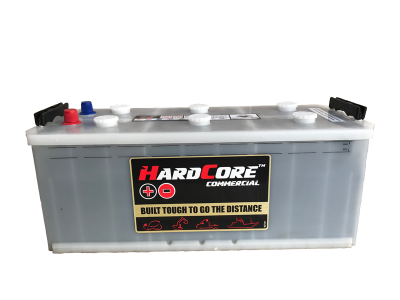

HARDCORE MFN150BHD

Share

OVERVIEW

Hardcore #MFN150BHD is a European N150 battery designed specifically for a wide range of European commercial applications including those require bottom hold-down ledges to secure the battery. Advanced Silver-Calcium technology and lock-bonded elements ensure maximum durability from this ultra-high-performance battery, even in severe-service applications.



HARDCORE MFN150BHD

APPLICATIONS



Deutz-Fahr Tractors
New Holland Telehandlers
Manitou Telehandlers
Iveco Buses
Kenworth Trucks with Paccar engine
Volvo Trucks & Buses
European Cranes
Earthmoving & Construction Machinery
Agricultural Machinery
Standby Diesel Generators



Download product data sheet



FEATURES & BENEFITS

  • Correct DIN specifications and dimensions for fast, easy replacement of all European DIN-B batteries
  • Bottom Hold-Down ledges on all four sides
  • Thicker, stronger full-frame plates with high tin content for improved charge acceptance
  • Added Silver – Highest resistance to damaging effects of vibration, heat and corrosion
  • High capacity for late-model European tractors & telehandlers
  • Ultra-safe design – Maintenance-Free plates in accessible casing reduced the risk of dry-out explosion
  • Designed to comply with AS4029 Worksafe¨ recommendations for use in standby diesel generators

TECHNICAL SPECIFICATIONS



Battery Type: Maintenance-Free Accessible Container Material /Colour: Polypropylene / White - Opaque
Voltage: 12 Lid Type / Colour: Accessible / White
Capacity (@20hr rate): 170 Ah Plate Type: Full-Frame Silver-Calcium
Cold Cranking Amps -18°C, SAE: 1100 A Separator Type: Microporous Low-resistance PE
Cold Cranking Amps - 0°C SAE: 1300 A Anti-Vibration: Hot-Melt Lock-Bonded Elements
Reserve Capacity: 350 Min. Assembly Layout: 4 (RH Pos)
Wet Battery Weight: 44 Kg Casing: JIS / DIN N150-BHD / DIN-B
Lower Casing Dimensions:
(Includes hold-down ledges)
L 486 x W 218 x H 185 Overall Dimensions:
Incl. Handles & Terminals:
L508 x W218 x TH 210
