U.S. BATTERY– Made in the U.S.A

For close to a century, the U.S. Battery company have been on a mission to power industries with the highest quality and longest lasting batteries available on the market. U.S. Battery developed their lead acid batteries with Xtreme Capacity 2TM formulation and Diamond Plate Technology® and have now also introduced the exclusive Essential Li® series of Lithium-ion batteries.

R&J Batteries is proudly the exclusive U.S. Battery distributor for Australia and New Zealand. Our company-owned branches and selected U.S. Battery stockists supply the complete deep-cycle range of 6V, 8V & 12V lead acid and lithium-ion (LiFePO4) batteries suitable for: golf carts, electric vehicles, floor machines, hire & rental equipment, renewable energy and marine or recreational vehicle applications.


Lead Acid Batteries Lithium-ion batteries Applications Product data sheets

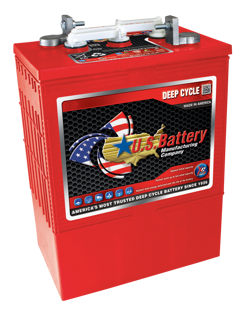

U.S. Battery – Deep-Cycle Batteries

U.S. Battery Company has been building flooded lead acid batteries since 1926 and are 100% manufactured in the USA including the 6-volt, 8-volt & 12-volt deep cycle range.

These deep-cycle batteries are built with Xtreme Capacity 2 (XC2) Diamond Plate Technology making U.S. Batteries the best choice for applications where batteries are subjected to deep discharge and fast recharge on a daily or regular basis.

This new technology consists of synthetic tetrabasic lead sulphate (TTBLS) additive in the paste mix which provides controlled crystal sizes and results in the enhanced performance, charging and life characteristics of U.S. Battery’s deep-cycle products.


U.S. Battery’s Xtreme Capacity Diamond Plate Technology provides:

Increased Initial Capacity
Synthetic TTBLS (tetrabasic lead sulfate) additive in the paste mix provides uniformly controlled crystal size of the resulting TTBLS in the cured plate and higher conversion efficiency of TTBLS to lead dioxide in the formed positive plate giving higher capacity.


Higher Peak Capacity
The same controlled TTBLS crystal size results in a higher conversion of TTBLS to lead dioxide in the cycled positive plate with greater and more uniform porosity and surface area for higher peak capacity.


Improved Energy Density and Specific Energy
Since there is no increase in the size or weight of the battery, higher capacity translates to improved energy density (watt-hours/liter) and specific energy (watt-hours/kilogram).


Enhanced Recharge-ability
The more uniform crystal structure of the formed positive plate results in enhanced recharge-ability particularly at low temperature and from varying states of discharge.


Fortified Plate Construction
Improved Vibration and Shock Resistance. The more uniformly controlled TTBLS crystal size results in a stronger crystal network within the formed positive plate active material resulting in decreased shedding from vibration and shock.


Improved Life Cycle
The stronger crystal network within the formed positive plate active material also results in decreased shedding from deep cycling – the primary failure mode in deep cycle batteries.

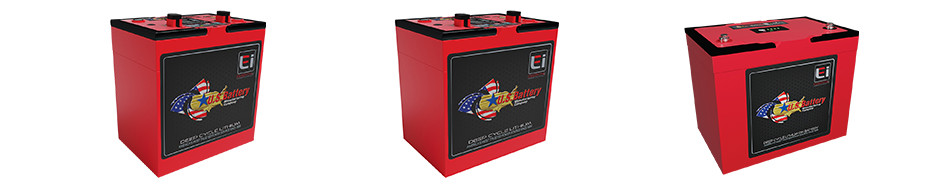

U.S. Battery – ESSENTIAL Li® Lithium-ion Batteries

U.S. Battery have introduced the new ESSENTIAL Li® Lithium-ion battery series to their already diverse range of reliable batteries. These batteries use LiFePO4 chemistry which is one of the safest lithium chemistries available as they are not susceptible to thermal runaway. This new range gives users additional choice in their battery purchase, giving them a long-lasting, lightweight and maintenance free alternative to lead acid batteries. With a cycle life up to 3 times more than a standard lead acid battery, these ESSENTIAL Li batteries are designed to be ‘the only battery you need’.

LiFePO4 Chemistry

Safe & Stable, not susceptible to thermal runway

Fast Charging

Reach full charge in as little as 3 hours

Engineered to last longer

3 times more cycles than lead acid

Intelligent BMS

Monitors State of Charge (SoC) and Status

CAN Networking*

Allows communication of battery status to devices

Mobile App Enabled**

Connect to mobile app via Bluetooth to monitor battery status

Wake/Status Button

Manually switch battery off for long term storage


Multiple batteries can be used in parallel for increased capacity

LED Charge indicator

Easily see State of Charge (SoC) and error codes


IP67* and IP65** construction prevents damage from outside particles and moisture.

*available on 24V and 48V batteries

**available on the US 12V G24

Golf Cart & Utility

Battery powered golf carts and electric vehicles have unique power requirements that U.S. Battery understands.

US battery for golf cart

Maintaining peak capacity for longer periods between charges, means greater vehicle reliability and lower annual operating costs. This is why U.S. Battery has developed industry leading lead acid batteries as well as the new long lasting ESSENTIAL Li alternative.

U.S. battery lead acid deep cycle batteries are engineered with the company’s exclusive XC2 formulation and Diamond Plate Technology. This creates the industry’s most efficient battery plates, delivering greater watt-hours per litre and watt-hours per kilogram than any other flooded lead-acid battery in the market.

  • Manufactured in the U.S.A
  • XC2™ Formulation
  • Diamond Plate Technology®
  • Rugged Construction
  • SpeedCap® Venting Positive Locking System

The ESSENTIAL Li range of Lithium-ion batteries are perfectly suited for use in golf carts. These drop in replacement batteries are engineered with safety in mind, using Lithium Iron Phosphate (LiFePO4) chemistry, widely considered the safest chemistry available. Available in 24V & 48V sizes.

  • Charges in as little as 3 hours
  • Lightweight
  • 3 times more cycles than lead acid
  • Intelligent BMS for safety
  • Low maintenance

Industrial Equipment

Industrial applications like scissor lifts, access equipment and floor machines require an efficient and reliable power source that U.S. Battery products can easily provide.
US Battery Aerial worl platforms

U.S. Battery has developed both lead acid deep cycle batteries and the ESSENTIAL Li Lithium Iron Phosphate batteries suitable for industrial equipment. The lead acid battery range has sizes to suit various industrial applications and have been engineered with exclusive XC2™ and Diamond Plate Technology®. These features produce deep cycle batteries capable of maintaining peak capacity for longer periods between charges, delivering the highest total energy over the life of the batteries while lowering operating costs. These technologies also result in the industry’s most efficient battery plates, leading to greater watt-hours per litre and watt-hours per kilogram than any other flooded lead-acid battery on the market.

  • Improved energy density (watt-hours per litre) and specific energy (watt-hours per =kilogram)
  • Enhanced rechargeability; costs less to charge
  • Fortified plate construction provides a stronger crystal network for decreased shedding of positive plates

Also suitable for: Electric Trolling Motors, Marine & RV House Power, Camping, Off Grid Cabins, Remote Power, UPS Systems, Pumps, Dual Battery Kits, Electric Vehicles, Roadside Signs/Arrow Boards.

The ESSENTIAL Li range has also been designed with maximum operating time in mind. With faster recharging and a long cycle life they minimise downtime while providing reliable, maintenance free power. These batteries are an ideal upgrade for applications using GC2 or other popular industrial sizes that don’t have a pre-determined weight specification. Sizes available are:

  • US12VG24
  • US24VGC2
  • US24VGC2
  • US48V105

Solar & Renewable Energy Storage

The Renewable Energy (RE) Series of lead acid batteries are designed to provide the highest peak capacity, longest cycle life, and greatest reliability for powering your off-grid locations, or those connected to the grid and needing backup power, energy storage and self-consumption.

Renewable energy battery

The RE Series batteries also utilize the company’s exclusive XC2™ formulation and Diamond Plate Technology® to create the most efficient battery plates for energy storage. With a wide range of deep cycle battery sizes, we can ensure you get the right solution for your renewable energy storage requirements.

Sizes include;

  • Group 24, 27 & 31
  • GC2, GC8
  • J250, J305, L16, J185 and more.


R&J Batteries distribute U.S. Battery exclusively in Australia and New Zealand across our vast distribution network and company-owned branches. We pride ourselves on supplying the best quality products and services, which is why in 2016 we added world leading U.S. Battery products to our portfolio. Since then our partnership with U.S. Battery Company has prospered and R&J Batteries is now the proud exclusive distributors in these areas.


For more information on R&J Batteries and our U.S. Battery Deep-Cycle products, please get in touch with us by calling your closest store on 1300 769 282 or by heading to our contact page.
