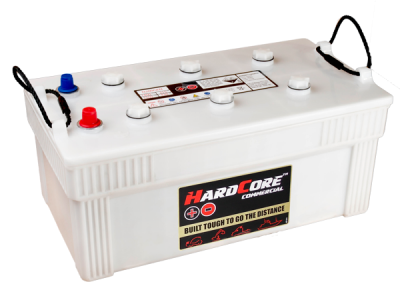

N200GEN-XHD

Share

OVERVIEW

Hardcore # N200GEN-XHD is a high-capacity N200 battery designed for starting very large capacity diesel engines in large earthmoving and mining machinery. N200GEN-XHD’s unique design features maintenance-free silver-calcium chemistry in a serviceable casing, with anti-stratification separators to provide exceptional durability, reliability and safety in all severe-service applications.





APPLICATIONS

CAT Mining trucks & loaders
CAT Earthmoving dozers & scrapers
DRESSTA dozers & loaders
DOOSAN excavators
HITACHI excavators
KOMATSU Mining trucks & loaders
KOMATSU Earthmoving dozers & graders
VOLVO industrial
Standby Diesel Generators
Constant Float-charge applications



Download product data sheet



FEATURES & BENEFITS

  • Designed to handle high-current starting and heavy auxiliary power loads
  • Thicker, stronger Full-Frame plates with high tin content extend battery life and cyclic ability
  • Reinforced Lead links and large-diameter TTP intercell connectors for maximum reliability
  • Added Silver improves charge acceptance, highest resistance to heat and corrosion
  • Double Lock-Bonded elements maintain cell-group integrity in high-vibration applications
  • Glass-Mat separators for added protection against vibration and acid-stratification*
  • Pb-Ca-Sn-Ag alloy – Lowest water loss rate of any flooded lead-acid battery chemistry
  • Ultra-safe design – Maintenance-Free plates in accessible casing – reduced risk of dry-out explosion

TECHNICAL SPECIFICATIONS

Battery Type: Maintenance-Free Serviceable Container Material / Colour: Polypropylene / White - Opaque
Voltage: 12 Lid Type / Colour: Accessible / White
Capacity (@20hr rate): 235Ah Plate Type: Full-Frame Silver-calcium + high-tin content
Cold Cranking Amps -18°C, SAE: 1500 Separator Type: Dual envelope with
glass-mat lining*
Cold Cranking Amps - 0°C SAE: 1650 Anti-Vibration: Double Lock-Bonded
Elements
Reserve Capacity: 450 Min. Assembly Layout: 4 (RH Positive)
Wet Battery Weight: 60 Kg Terminal Type: 1 (SAE)
Casing Dimensions: L 517 x W 276 x H 242 BCI Group / JIS: 8D / N200
