Hardcore HCC30H

Share

OVERVIEW

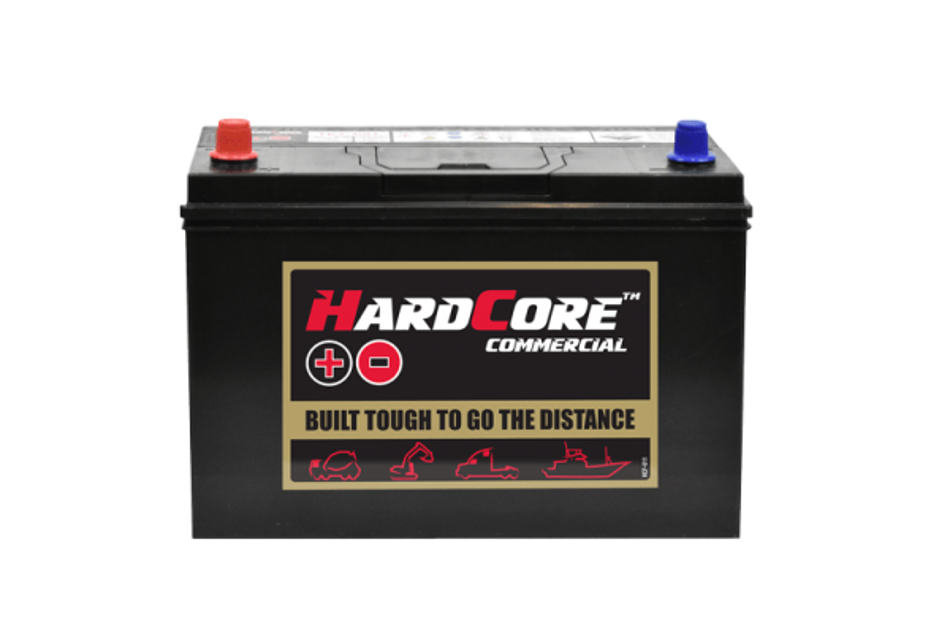

Hardcore #HCC30H is a Severe-Service BCI Group 30H battery designed and built to outperform and outlast other brands in harsh operating environments.



Featuring double lock-bonded elements with thicker, full-frame positive and negative plates made from the highest specification silver-calcium alloy. This heavyweight delivers superior reliability and service life in a wide range of commercial applications.



FEATURES & BENEFITS

  • 20% Thicker Silver-Calcium Plates
  • Stronger Fully-Framed Positive and Negative
  • Hot-Melt Lock-Bonded Elements resist vibration damages
  • Added Silver for highest resistance to heat and corrosion
  • Ultra-Low Water Loss, even in high temperature environments
  • High-Cyclic ability for electrical accessory loads
  • Serviceable Casing complies with Worksafe® recommendations for diesel generators



APPLICATIONS

Freightliner Trucks
Western Star Trucks
Caterpillar Trucks
Caterpillar Forestry Machinery
Caterpillar Industrial Machinery
Caterpillar Roadmaking Machinery
Case IH Tractors & Machinery
Mining & Earthmoving Machinery
Standby Diesel Power Generators



Download Product Data Sheet





TECHNICAL SPECIFICATIONS

Battery Type: Serviceable Maintenance-Free Container Material/ Colour: PP / Black
Voltage: 12 V Lid Type/ Colour: SMF / Black
Capacity (@20hr rate): 110 AH Positive Plate Type: Full-Frame Silver-Calcium
Cold Cranking Amps -18˚C, SAE: 900 Negative: Full-Frame Lead-Calcium-Tin
Cold Cranking Amps - 0˚C, SAE: 1000 Separator Type: Low-Resistance Microporous Envelope
Reserve Capacity: 180 Min. Assembly Layout: 1 (LH Positive)
Overall Dimensions: L300 x W172 x TH240 Terminal Type: Standard SAE
Wet Battery Weight: 28.6 Kg BCI Group: 30H
